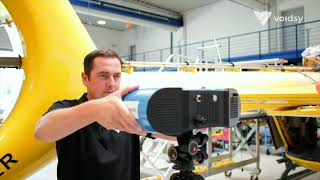

NDT&E system 3D V-ROX

Ultra-compact Active Thermography

The 3D V-ROX system with a overall weight of less than 5 kg, enabling the system to handle complex measurement and inspection tasks manually, semi-automatically or fully-automatically.

Reduction of inspection costs

The system is up to 80% faster in use and more cost-effective than conventional testing methods in many industries.

Production Optimization

The embedded computation unit and a cutting-edge signal processing technique enable the first inline-capable thermal tomography of highly integrated components.

Hard Facts

• Compact Sensor: 423 mm x 270 mm x 130 mm

• Spatial/Depth resolution: up to 660/100 μm

• Inspection area: up to 400 mm x 300 mm

• Overall weight: <6 kg

Power supply:

• 2,3 kW @ 230V/50Hz or

• 4,2 kW @ 400V/50Hz

Connections:

• 1GBase-T IEEE 802.3ab

• Auxiliary Connector
